iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Write protection security
Enhanced power cycling management

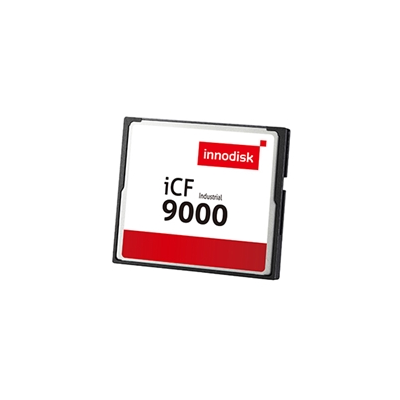

| Module Name | iCF 9000 |
| Interface | PATA |
| Flash Type | SLC |
| Capacity | 1GB~64GB |
| Sequential R/W (MB/sec, max.) | 110/100 |
| Max. Power Consumption | 1.53W(5V x 306mA) |
| Max. Channels | 4 |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 42.8 x 36.4 x 3.3 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 1GB | 2GB | 4GB | 8GB | 16GB | 32GB | 64GB |
|
Standard Grade (0°C ~ +70°C)
|
DC1M-01GD71AC2DB | DC1M-02GD71AC2QB | DC1M-04GD71AC2QB | DC1M-08GD71AC2QB | DC1M-16GD71AC1QB | DC1M-32GD71AC1QB | DC1M-64GD71AC1QB |
|
Industrial Grade (-40°C ~ +85°C) |
DC1M-01GD71AW2DB | DC1M-02GD71AW2QB | DC1M-04GD71AW2QB | DC1M-08GD71AW2QB | DC1M-16GD71AW1QB | DC1M-32GD71AW1QB | DC1M-64GD71AW1QB |
